Press automation

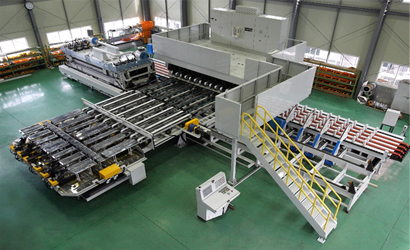

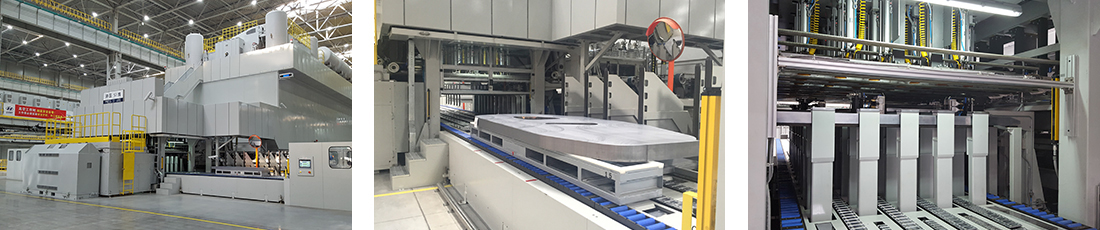

Destacker System

This equipment is used to separate the blank from the stack loaded by the forklift, feed, clean, align and feed it to the press. In addition, it can flexibly respond to various material conditions such as size, weight, and shape.


  • Production speed : Max. 15SPM
  • Applicable material l: Steel, Aluminum, TWB
  • Material Size : Max. 4,300 mm x 2,000 mm / Min. 800mm x 500mm

Equipment Components

  • Stack Carrier & Positioner, Loading Lift (*Stack Automatic sorting)
  • Stack Lift, FRT/RR Magnet Floater
  • Magnet Belt Feeder & Vacuum Lift
  • Washing Unit
  • Centering Device
